详情展示

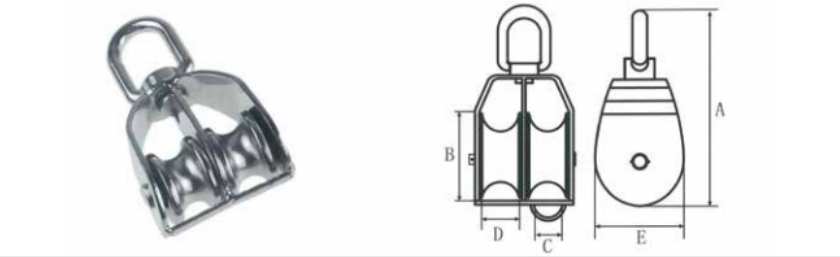

SIZE | A (mm) | B (mm) | C (mm) | D (mm) | WLL (Kg) | Package (Pcs/Bag) | Approx.Weight (Kg/1000Pcs) | AISI 304 Cost (RMB/Pcs) | AISI 316 Cost (RMB/Pcs) |
M15 | 15.0 | 6.0 | 11.0 | 58.0 | 35.0 | 50 | 56.7 | 14.6 | 20.5 |
M20 | 20.0 | 8.0 | 13.0 | 73.0 | 75.0 | 50 | 95.3 | 16.4 | 22.9 |
M25 | 25.0 | 11.0 | 15.0 | 85.0 | 150.0 | 20 | 178.1 | 23.1 | 32.4 |
M32 | 32.0 | 12.0 | 15.0 | 94.0 | 250.0 | 20 | 215.3 | 27.4 | 38.3 |
M50 | 50.0 | 13.5 | 20.0 | 130.0 | 400.0 | 5 | 445.4 | 57.6 | 80.6 |
M75 | 75.0 | 14.5 | 23.1 | 163.0 | 750.0 | 2 | 1532.7 | 121.6 | 170.3 |
M100 | 100.0 | 26.0 | 24.0 | 210.0 | 1000.0 | 2 | 2773.2 | 210.0 | 294.5 |
