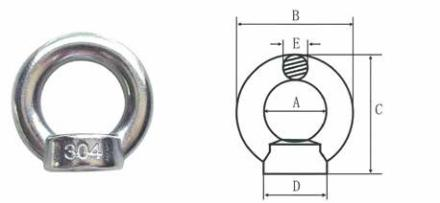

SIZE | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Package (Pcs/Bag) | Approx.Weight (Kg/1000Pcs) | AISI 304 Cost (RMB/Pcs) | AISI 316 Cost (RMB/Pcs) |
M5 | 12.20 | 22.10 | 21.70 | 11.70 | 4.95 | 100 | 9.20 | 2.00 | 2.60 |
M6 | 16.42 | 27.00 | 29.60 | 16.00 | 5.36 | 100 | 19.80 | 2.20 | 2.86 |
M8 | 20.20 | 34.80 | 35.20 | 18.60 | 7.30 | 100 | 36.40 | 3.20 | 4.16 |
M10 | 25.60 | 42.80 | 43.50 | 23.30 | 8.60 | 50 | 63.30 | 4.80 | 6.24 |
M12 | 30.20 | 50.80 | 51.00 | 28.40 | 10.30 | 50 | 101.90 | 8.40 | 10.92 |
M14 | 30.20 | 52.60 | 54.30 | 28.50 | 11.20 | 50 | 128.70 | 10.00 | 13.00 |
M16 | 34.70 | 59.70 | 59.30 | 32.60 | 12.50 | 20 | 178.80 | 13.60 | 17.68 |
M18 | 37.06 | 66.45 | 66.80 | 37.40 | 15.35 | 10 | 286.60 | 25.60 | 33.28 |
M20 | 40.00 | 68.40 | 66.80 | 41.60 | 14.20 | 10 | 265.00 | 20.00 | 26.00 |
M24 | 50.33 | 84.90 | 86.00 | 47.00 | 17.30 | 10 | 504.60 | 40.00 | 52.00 |
M27 | 42.88 | 85.00 | 83.84 | 49.00 | 21.67 | 10 | 674.50 | 60.00 | 78.00 |
M30 | 54.30 | 103.22 | 104.30 | 54.60 | 24.00 | 10 | 1025.50 | 96.00 | 124.80 |
M36 | 67.40 | 123.80 | 122.90 | 72.90 | 26.90 | 10 | 1873.60 | 170.00 | 221.00 |
