详情展示

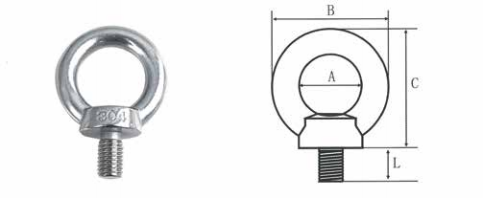

SIZE | A (mm) | B (mm) | C (mm) | L (mm) | Package (Pcs/Bag) | Approx.Weight (Kg/1000Pcs) | AISI 304 Cost (RMB/Pcs) | AISI 316 Cost (RMB/Pcs) |
M3 | 7.29 | 12.92 | 13.94 | 9.51 | 100 | 2.92 | 2.62 | 3.67 |
M4 | 10.41 | 17.77 | 19.17 | 10.83 | 100 | 6.32 | 2.72 | 3.81 |
M5 | 13.55 | 22.43 | 23.65 | 10.86 | 100 | 11.16 | 2.72 | 3.81 |
M6 | 16.28 | 27.12 | 29.85 | 12.00 | 100 | 21.50 | 1.15 | 1.61 |
M8 | 20.80 | 35.70 | 35.10 | 14.00 | 100 | 46.30 | 1.80 | 2.52 |
M10 | 25.70 | 42.82 | 44.00 | 18.00 | 50 | 88.00 | 2.90 | 4.06 |
M12 | 30.30 | 51.10 | 51.46 | 20.00 | 50 | 126.00 | 4.80 | 6.72 |
M14 | 30.00 | 52.60 | 52.04 | 20.00 | 20 | 151.00 | 6.20 | 8.68 |
M16 | 37.20 | 59.80 | 60.70 | 20.00 | 20 | 205.00 | 8.20 | 11.48 |
M18 | 39.40 | 67.50 | 69.40 | 20.00 | 10 | 321.00 | 11.50 | 16.10 |
M20 | 40.00 | 69.00 | 71.75 | 30.00 | 10 | 357.00 | 12.00 | 16.80 |
M24 | 49.70 | 84.50 | 84.60 | 37.00 | 10 | 625.50 | 24.00 | 33.60 |
M27 | 42.65 | 85.62 | 84.81 | 41.50 | 10 | 913.50 | 45.00 | 63.00 |
M30 | 54.46 | 102.76 | 102.30 | 45.00 | 10 | 1350.00 | 53.00 | 74.20 |
M36 | 66.76 | 124.01 | 124.80 | 48.00 | 10 | 2390.00 | 105.00 | 147.00 |
