详情展示

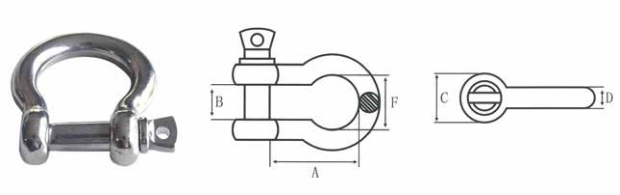

SIZE | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | Package (Pcs/Bag) | Approx.Weight (Kg/1000Pcs) | AISI 304 Cost (RMB/Pcs) | AISI 316 Cost (RMB/Pcs) |
M4 | 16.0 | 9.0 | 8.5 | 3.9 | 12.5 | 100 | 8.0 | 2.88 | 3.74 |
M5 | 17.5 | 11.2 | 9.8 | 4.9 | 14.8 | 100 | 14.5 | 3.20 | 4.16 |
M6 | 23.0 | 12.8 | 11.5 | 5.6 | 21.0 | 100 | 25.6 | 3.40 | 4.42 |
M8 | 27.0 | 16.0 | 16.3 | 7.6 | 24.8 | 50 | 57.5 | 5.10 | 6.63 |
M10 | 35.4 | 22.5 | 18.8 | 9.6 | 29.0 | 50 | 111.0 | 7.20 | 9.36 |
M12 | 45.0 | 25.0 | 23.6 | 11.6 | 37.0 | 20 | 198.0 | 11.60 | 15.08 |
M14 | 56.2 | 27.9 | 27.6 | 13.6 | 47.1 | 10 | 323.6 | 18.20 | 25.50 |
M16 | 61.5 | 34.0 | 31.6 | 15.5 | 54.0 | 10 | 482.0 | 28.00 | 36.40 |
M18 | 71.2 | 39.5 | 35.1 | 17.5 | 57.1 | 5 | 696.5 | 49.60 | 69.50 |
M20 | 80.0 | 40.0 | 39.1 | 19.6 | 64.0 | 4 | 939.5 | 55.20 | 71.76 |
M22 | 86.5 | 45.5 | 43.5 | 21.9 | 72.7 | 2 | 1277.5 | 79.20 | 102.96 |
M25 | 92.4 | 50.1 | 48.4 | 24.5 | 73.9 | 2 | 1772.5 | 137.00 | 178.10 |
M28 | 118.5 | 59.4 | 54.0 | 27.2 | 93.8 | 2 | 2595.6 | 197.00 | 256.10 |
M32 | 154.3 | 68.2 | 62.7 | 31.4 | 116.2 | 2 | 4081.7 | 290.00 | 435.00 |
M38 | 173.6 | 81.3 | 75.9 | 37.5 | 133.4 | 2 | 7129.5 | 496.00 | 744.00 |
