详情展示

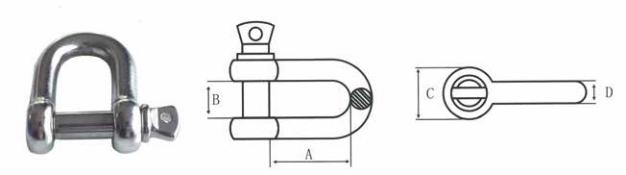

SIZE | A (mm) | B (mm) | C (mm) | D (mm) | Package (Pcs/Bag) | Approx.Weight (Kg/1000Pcs) | AISI 304 Cost (RMB/Pcs) | AISI 316 Cost (RMB/Pcs) |
M4 | 16.0 | 8.2 | 8.6 | 3.9 | 100 | 8.0 | 2.7 | 3.5 |
M5 | 17.6 | 10.0 | 9.6 | 4.8 | 100 | 14.0 | 2.8 | 3.7 |
M6 | 24.5 | 13.0 | 11.9 | 5.7 | 100 | 24.0 | 3.3 | 4.3 |
M8 | 27.0 | 17.0 | 16.8 | 7.8 | 50 | 56.0 | 4.6 | 6.0 |
M10 | 35.5 | 21.0 | 19.8 | 9.7 | 50 | 109.0 | 6.8 | 8.8 |
M12 | 41.0 | 24.0 | 22.8 | 11.7 | 20 | 186.0 | 10.7 | 13.9 |
M14 | 48.1 | 28.9 | 28.1 | 13.6 | 10 | 300.0 | 16.6 | 21.6 |
M16 | 55.0 | 33.0 | 30.2 | 15.5 | 10 | 443.0 | 25.6 | 33.3 |
M18 | 61.5 | 35.5 | 37.3 | 17.7 | 5 | 721.0 | 40.0 | 52.0 |
M20 | 68.0 | 40.0 | 39.3 | 19.5 | 4 | 886.0 | 53.0 | 68.9 |
M22 | 74.8 | 44.8 | 44.1 | 21.9 | 2 | 1187.5 | 72.0 | 93.6 |
M25 | 84.8 | 55.2 | 48.3 | 23.7 | 2 | 1525.4 | 92.6 | 120.4 |
M28 | 100.9 | 59.3 | 53.6 | 27.6 | 2 | 2384.5 | 164.0 | 213.2 |
M32 | 115.0 | 66.3 | 63.5 | 32.0 | 2 | 3629.0 | 266.0 | 345.8 |
M38 | 131.0 | 78.0 | 74.8 | 37.5 | 2 | 6008.2 | 452.0 | 587.6 |
